EpiStart DNA Methylation (5-mC) ELISA Kit

The EpiStart™ DNA Methylation (5-mC) ELISA Kit is a hands-on educational assay for measuring and comparing global DNA methylation. Students use an antibody-based colorimetric ELISA to detect 5-methylcytosine (5-mC), generate a standard curve from known methylation standards, and calculate the 5-mC levels of DNA samples. Designed for classroom and teaching laboratory use, the kit combines core concepts in epigenetics with practical experience in pipetting, ELISA-based detection, replicate measurements, standard curves, and quantitative data analysis.

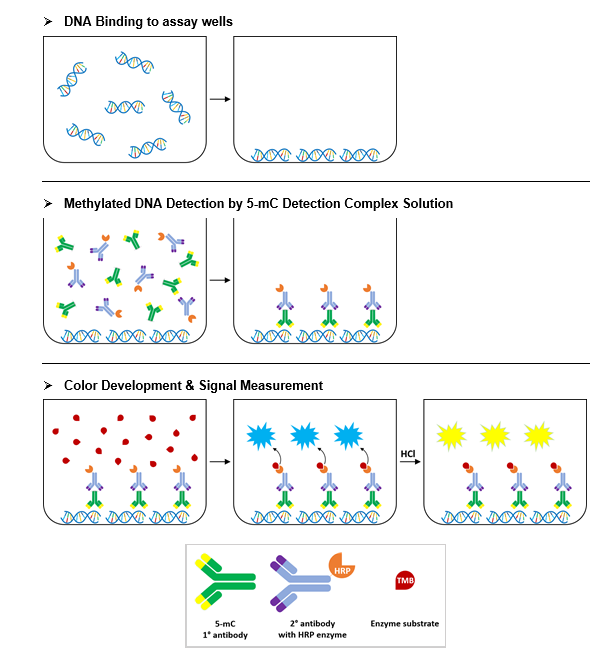

• DNA Binding: Control, standard, and sample DNA are immobilized in specially treated assay wells with high DNA affinity.
• 5-mC Detection: A 5-mC-specific antibody detection complex recognizes methylated cytosine in the bound DNA.
• Color Development and Measurement: Enzymatic color development produces a signal proportional to the amount of 5-mC, which is then quantified using a standard curve.

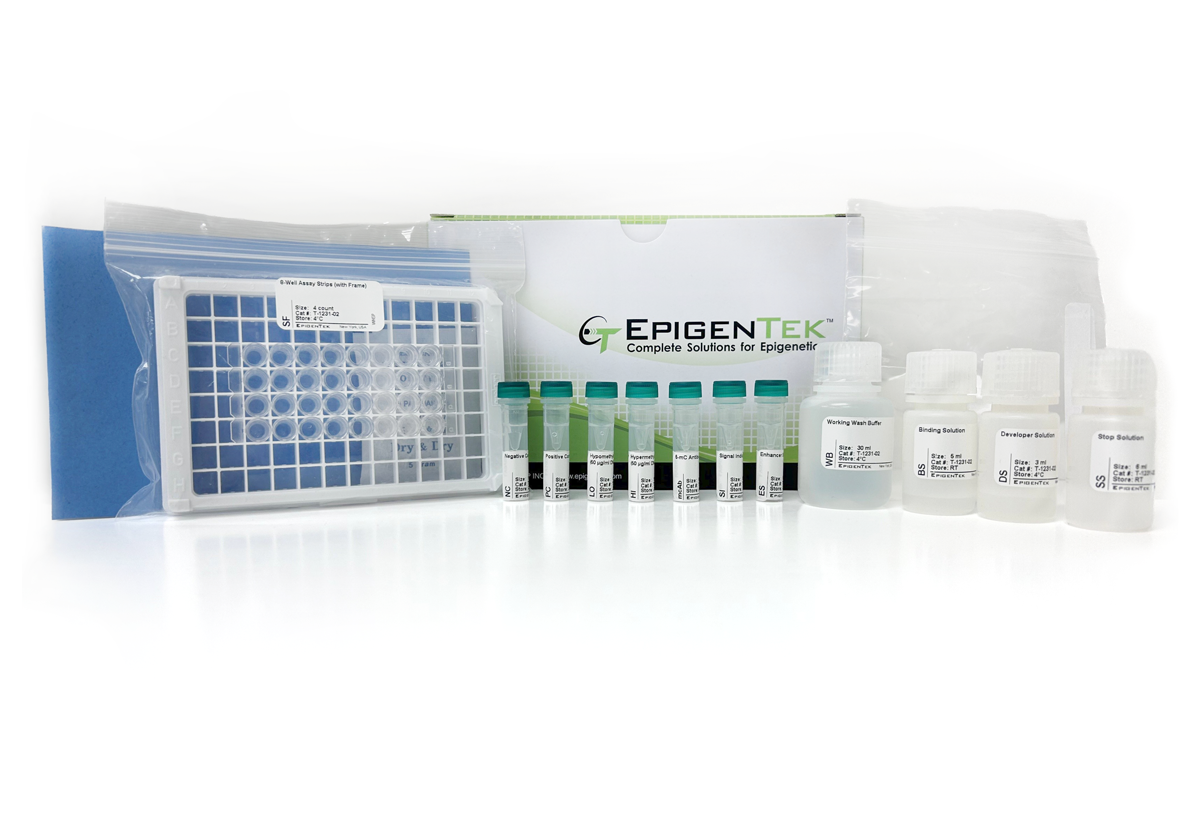

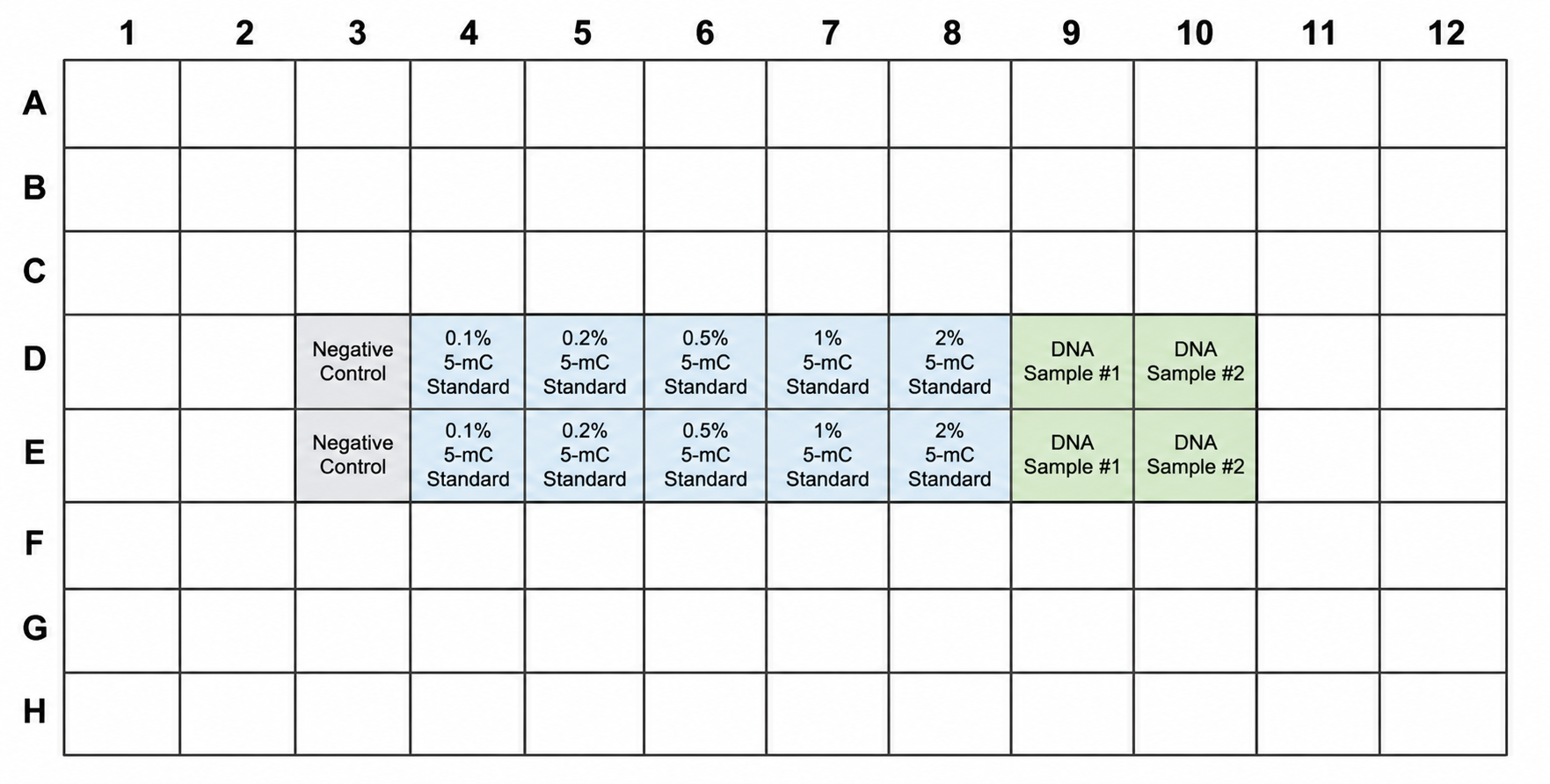

Students prepare five methylation standards covering 0.1%, 0.2%, 0.5%, 1.0%, and 2.0% 5-mC. Controls, standards, and DNA samples are tested in duplicate so students can evaluate experimental consistency in addition to determining methylation levels. Each kit includes unmethylated Negative Control DNA, a 2% methylated Positive Control, a low-methylation DNA sample, and a high-methylation DNA sample. The controls are used to prepare the methylation standards, while the supplied samples can be analyzed as known samples or relabeled by the instructor as unknowns for a more inquiry-based exercise.

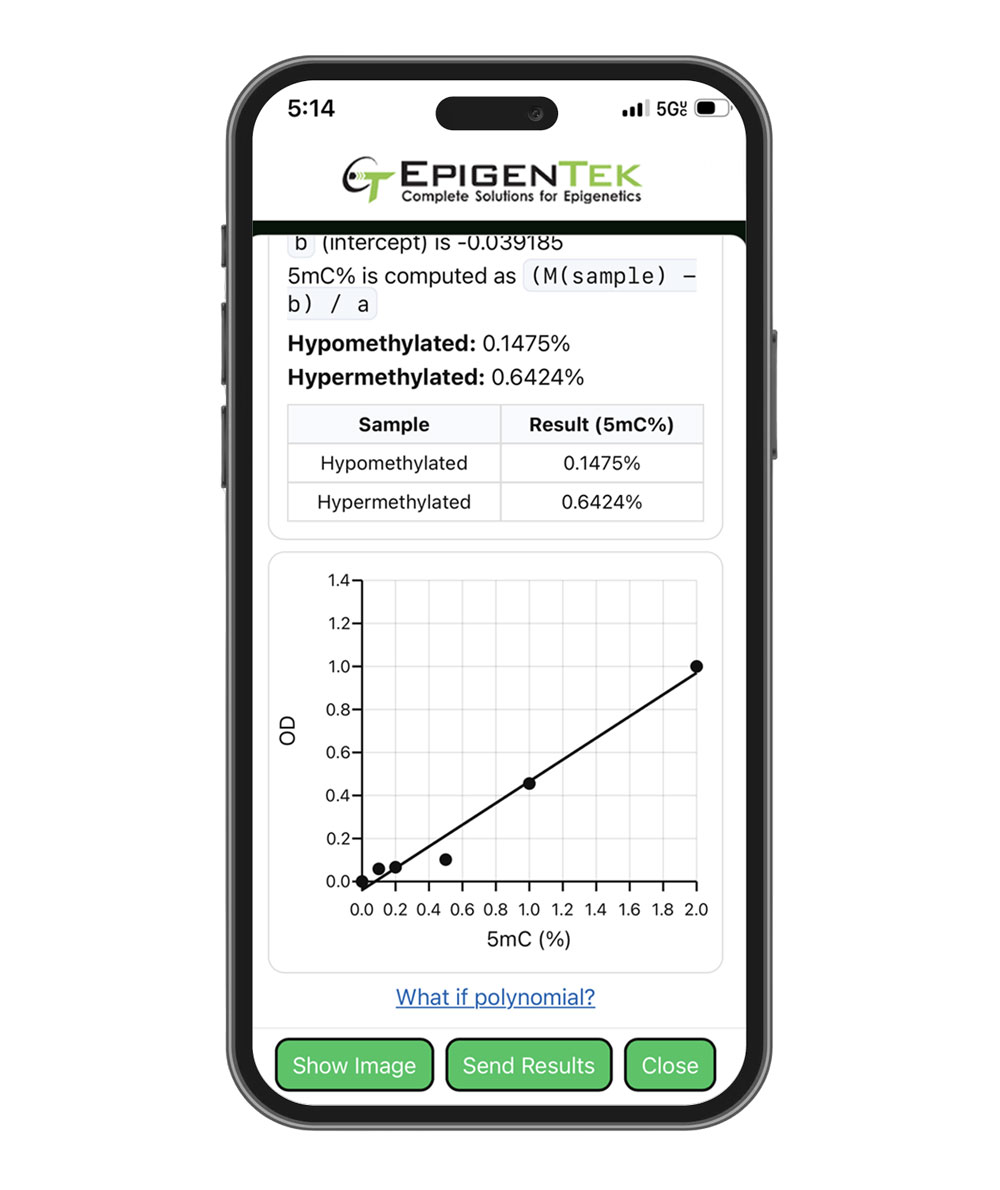

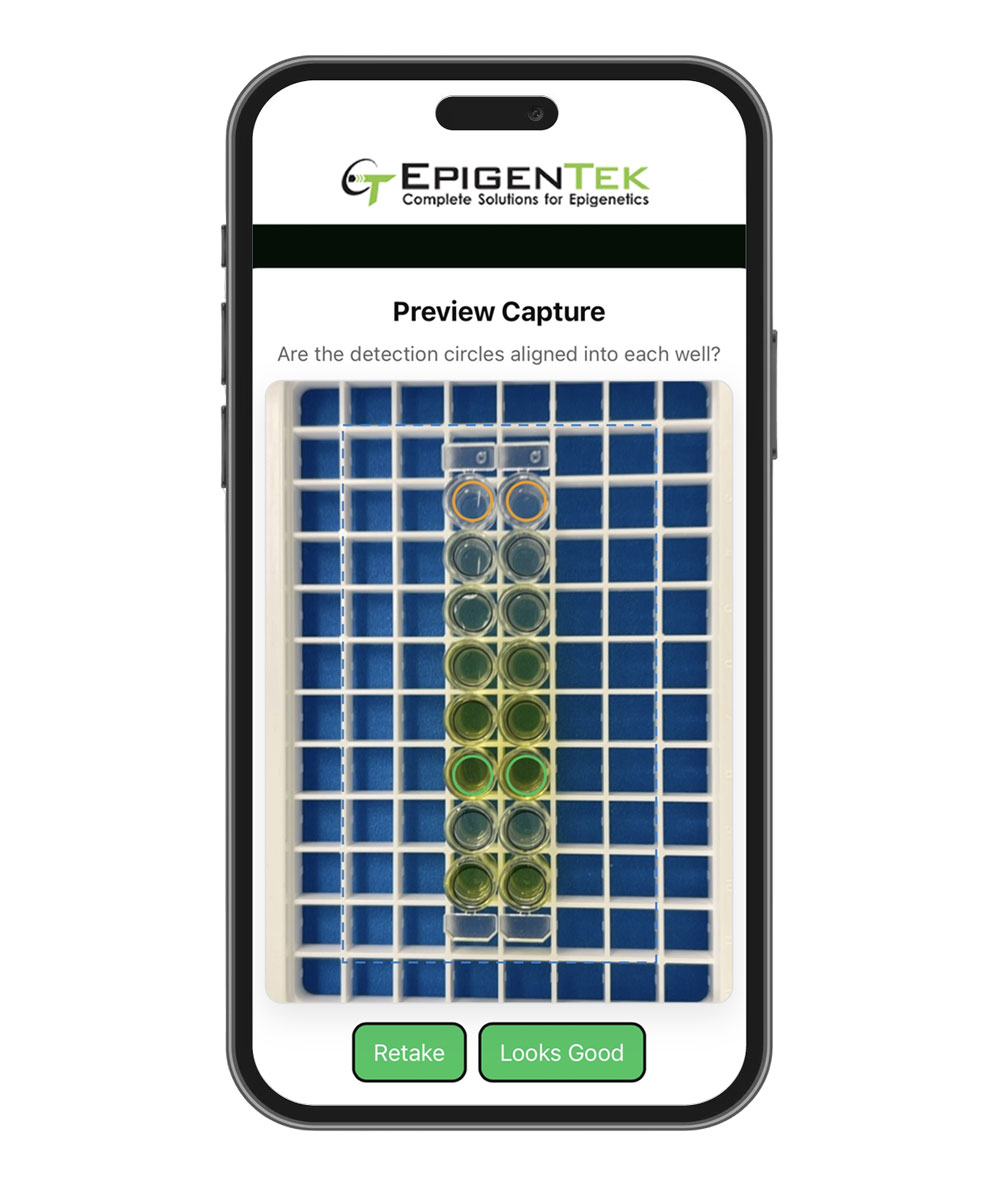

The completed assay is analyzed using the EpigenTek Microplate Scanner, a browser-based web app that uses a compatible smartphone camera (not included) to measure differences in well color intensity with no app download required. Students place the assay plate on the supplied Blue Reader Card and capture an image under bright, even lighting. The scanner generates proportional, OD-like signal values, constructs the standard curve, calculates sample 5-mC levels, and provides measurements such as mean, standard deviation, coefficient of variation, R², and fold difference. This connects the visible color reaction directly with quantitative experimental analysis.

• Quantitative analysis: Determine global 5-mC levels using an experimentally generated standard curve.
• Visual results: Methylated DNA produces a visible color signal that increases with 5-mC level.
• Hands-on workflow: Students perform DNA binding, antibody-based detection, washing, color development, and quantitative analysis.
• Duplicate measurements: Controls, standards, and samples are analyzed in duplicate to introduce experimental variation and reproducibility.
• Two complete assay runs: Four 8-well assay strips provide enough wells for two 16-well experiments when recommended reagent volumes are followed.
• Inquiry-ready: Included low- and high-methylation DNA samples can be relabeled as unknowns for blind analysis.
• Flexible sample use: Instructors may substitute their own DNA samples, including DNA from other species, when prepared at the required assay input.
• Integrated analysis: The browser-based scanner converts the visible assay result into a standard curve and calculated sample methylation levels.

• Understand DNA methylation and 5-methylcytosine as an epigenetic modification.
• Distinguish global DNA methylation from gene- or site-specific methylation.
• Understand antibody recognition and enzyme-linked colorimetric detection.
• Prepare and interpret a quantitative standard curve.
• Use interpolation to estimate unknown biological measurements.
• Compare replicate measurements using mean, standard deviation, and coefficient of variation.
• Gain practical experience with micropipetting, washing, incubation timing, and plate-based assays.
• Analyze and communicate quantitative experimental results.

Groups of 2 students are recommended to maximize hands-on participation, although groups of up to 4 students may be used depending on class size, student experience, and available equipment. Typical assay time is approximately 120-180 minutes for first-time users or groups using single-channel pipettes (approximately 90-120 minutes with a multichannel pipette). Each kit contains four 8-well assay strips and sufficient reagents for two complete 16-well runs when the recommended volumes are followed.

The kit is supported by instructional material designed to help instructors introduce DNA methylation, epigenetics, ELISA-based detection, and quantitative analysis before and during the laboratory activity. The Instructor Guide provides background on how DNA methylation contributes to gene regulation, development, cell identity, and genome stability, while also explaining that the biological effects of methylation depend on genomic location and context. It also distinguishes global DNA methylation from gene- or site-specific methylation so students understand exactly what the assay measures.

Instructional guidance also covers standard curves, interpolation, replicate measurements, experimental variation, and interpretation of quantitative results. Instructors are provided with suggestions for group roles, inquiry-based use of the included low- and high-methylation DNA samples, assay setup, timing, pipetting practices, troubleshooting, and interpretation of scanner output. These materials allow the activity to function not only as a laboratory protocol, but also as a structured introduction to experimental design and quantitative biological analysis.

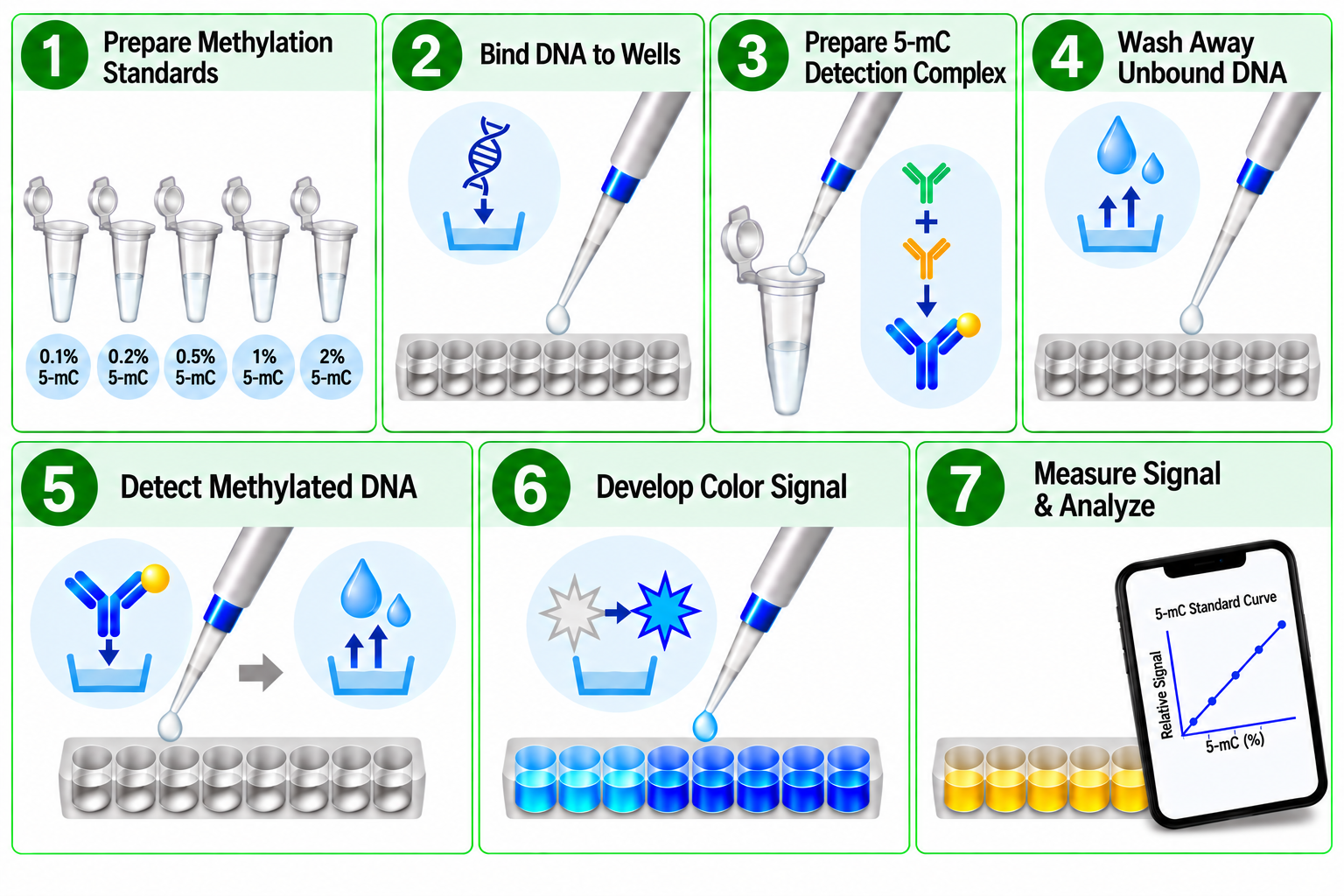

DNA is first immobilized in high-affinity assay wells. After unbound DNA is removed, a 5-mC Detection Complex containing antibody-based detection reagents is added to recognize methylated cytosine. Following additional washing, Developer Solution produces a blue enzyme-mediated color signal, with stronger coloration corresponding to greater amounts of 5-mC. Stop Solution changes the developed signal from blue to yellow, after which signals from the known methylation standards are used to construct a standard curve. The DNA sample signals are then compared with this curve to estimate their global 5-mC levels.

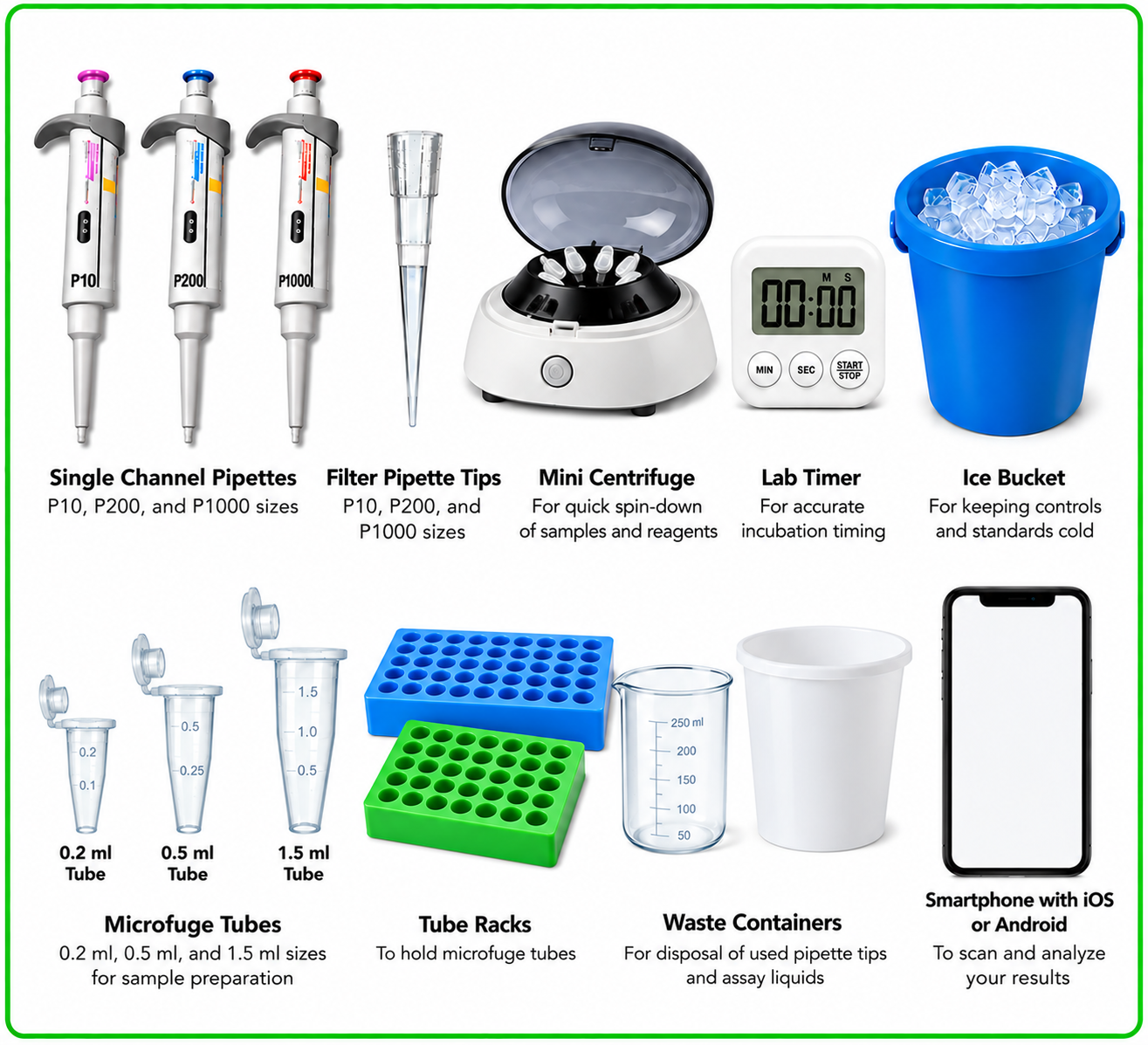

• Basic micropipetting and volume measurement
• Basic laboratory safety and PPE use
• Basic graph and quantitative data interpretation
