EpiQuik m6A RNA Methylation Quantification Kit (Colorimetric)


For absorbance-based quantitation of N6-methyladenosine in RNA in an ELISA-like format

Citations (2) | Write a Review
Input Type: RNA
Research Area: RNA Methylation
Target Application: Amount Quantitation
Vessel Format: 96-Well Plate
Application Guarantee: 6 months
Catalog No.SizePriceQty
P-9005-4848 reactions $299.00
P-9005-9696 reactions $499.00
Availability: Usually Ships In 1-2 Days
Product Overview

The EpiQuik™ m6A RNA Methylation Quantification Kit (Colorimetric) is a complete set of optimized buffers and reagents to colorimetrically quantify N6-methyladenosine (m6A or 6mA) in RNA. It is suitable for a direct detection of m6A RNA methylation status using total RNA isolated from any species such as mammals, plants, fungi, bacteria, and viruses. The kit has the following advantages and features:

  • Colorimetric ELISA-like assay using an m6A antibody with easy-to-follow steps for convenience and speed. The entire procedure can be completed within 3 hours and 45 minutes.
  • High sensitivity, of which the detection limit can be as low as 10 pg of m6A.
  • Unique binding solution allows RNA >70 nts to be tightly bound to the wells, which enables quantification of m6A from both mRNA and ncRNA such as tRNA, rRNA, and snRNA.
  • Optimized antibody and enhancer solutions allow high specificity to m6A, with no cross-reactivity to unmethylated adenosine within the indicated concentration range of the sample RNA.
  • Universal positive and negative controls are included, which are suitable for quantifying m6A from any species.
  • Strip-well microplate format makes the assay flexible for manual or high throughput analysis.
  • Simple, reliable, and consistent assay conditions.

Background Information
N6-methyladenosine (m6A) is the most common and abundant modification in RNA molecules present in eukaryotes. The m6A modification is catalyzed by a methyltransferase complex METTL3 and removed by the recently discovered m6A RNA demethylases FTO and ALKBH5, which catalyze m6A demethylation in an α-ketoglutarate (α-KG)- and Fe2+-dependent manner. It was shown that METTL3, FTO, and ALKBH5 play important roles in many biological processes, ranging from development and metabolism to fertility. m6A accounts for more than 80% of all RNA base methylations and exists in various species. m6A is mainly distributed in mRNA and also occurs in non-coding RNA such as tRNA, rRNA, and snRNA. The relative abundance of m6A in mRNA transcripts has been shown to affect RNA metabolism processes such as splicing, nuclear export, translation ability and stability, and RNA transcription. Abnormal m6A methylation levels induced by defects in m6A RNA methylase and demethylase could lead to dysfunction of RNA and diseases. For example, abnormally low levels of m6A in target mRNAs due to increased FTO activity in patients with FTO mutations, through an as-yet undefined pathway, contributes to the onset of obesity and related diseases. The dynamic and reversible chemical m6A modification in RNA may also serve as a novel epigenetic marker of profound biological significance. Therefore, more useful information for a better understanding of m6A RNA methylation levels and distribution on RNA transcripts could benefit diagnostics and therapeutics of disease.

Principle & Procedure
In this assay, total RNA is bound to strip wells using a RNA high binding solution. N6-methyladenosine (m6A) is detected using a specific capture N6-methyladenosine antibody and detection antibody. The detected signal is enhanced and then quantified colorimetrically by reading the absorbance in a microplate spectrophotometer at a wavelength of 450 nm. The amount of m6A is proportional to the OD intensity measured. Both negative and positive RNA controls are provided in this kit. A standard curve can be performed (range: 0.02 to 1 ng of m6A) or a single quantity of m6A can be used as a positive control. Because m6A content can vary from tissue to tissue, and from normal and diseased states, or vary under treated and untreated conditions, it is advised to run replicate samples to ensure that the signal generated is validated. This kit will allow the user to quantify an absolute amount of m6A and determine the relative m6A RNA methylation states of two different RNA samples.

Starting Materials
Starting materials can include various tissue or cell samples such as cells from flask or microplate cultured cells, fresh and frozen tissues, paraffin-embedded tissues, blood, body fluid samples, etc.

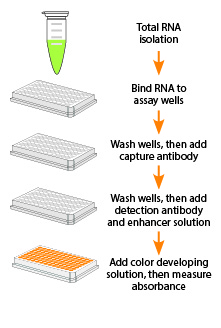

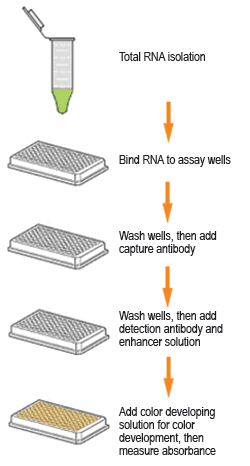

Fig. 1. Schematic procedure of the EpiQuik™ m6A RNA Methylation Quantification Kit (Colorimetric).

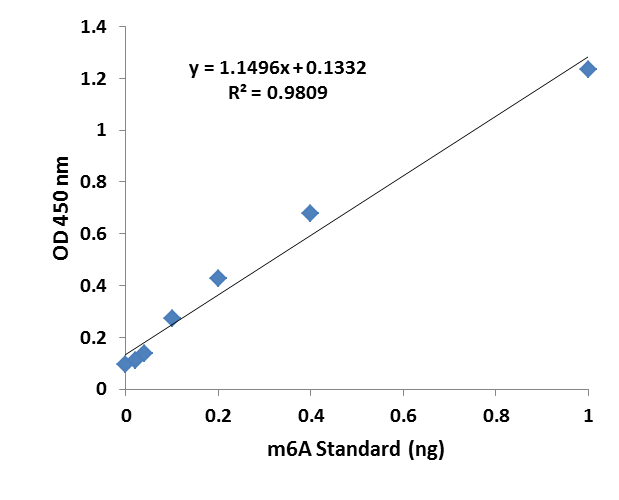

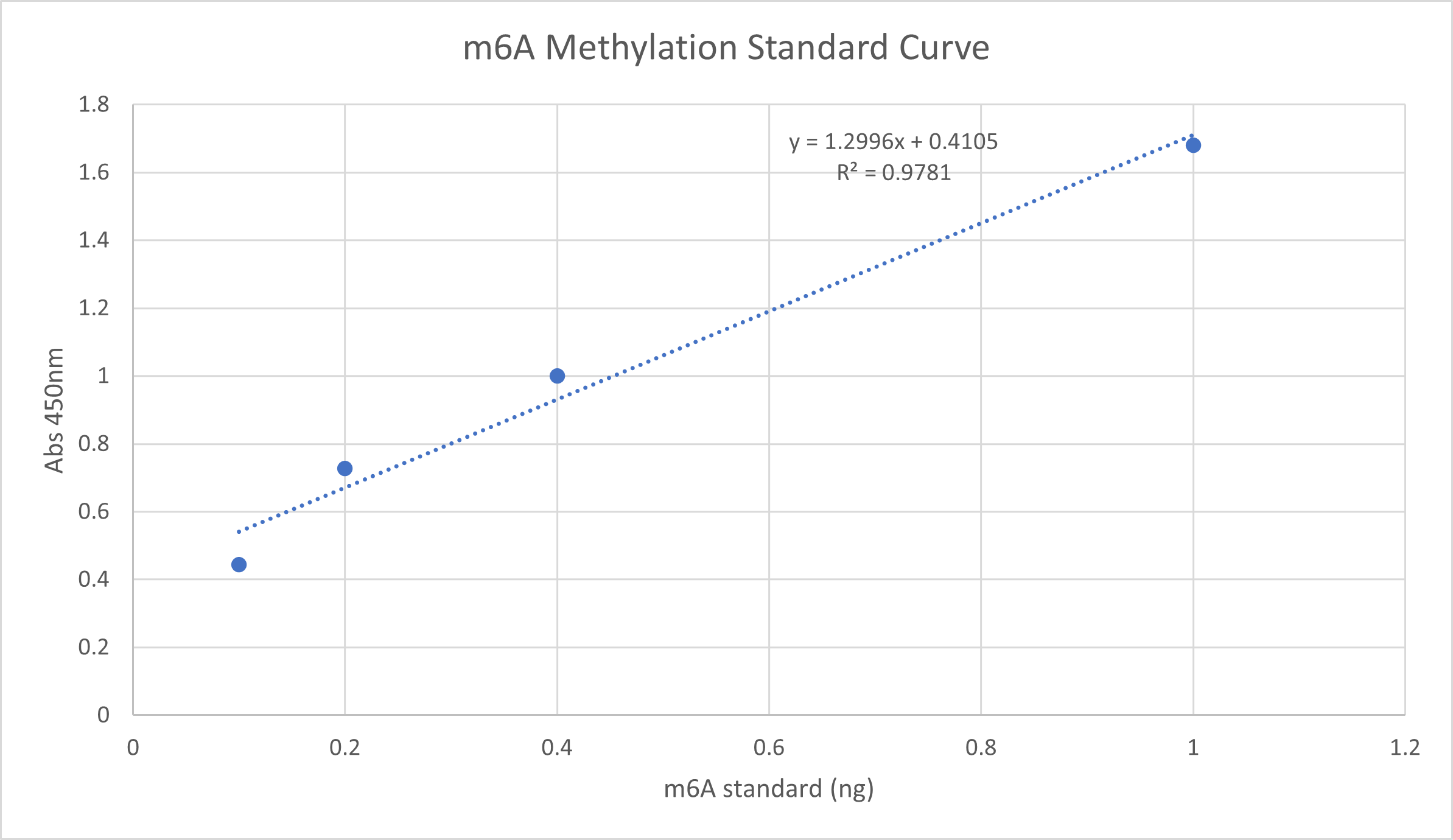

Fig. 2. m6A standard control was added into the assay wells at different concentrations and then measured with the EpiQuik™ m6A RNA Methylation Quantification  Kit (Colorimetric).

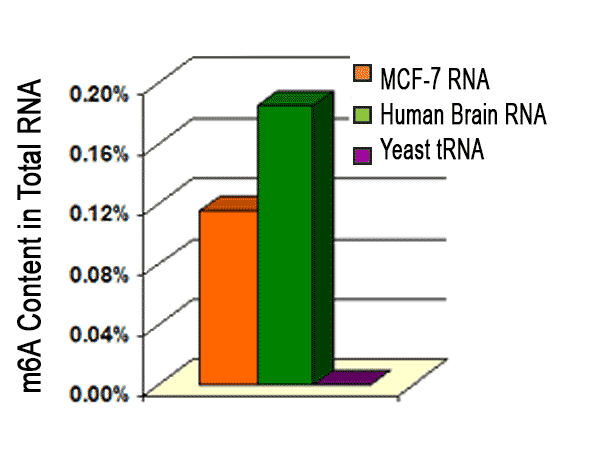

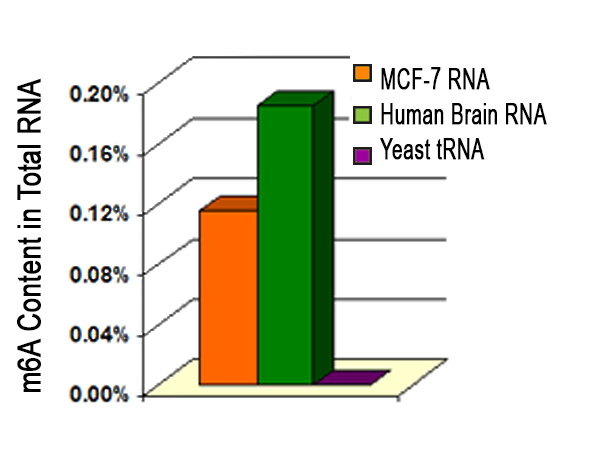

Fig. 3.  Quantification of m6A RNA methylation in different samples.  200 ng of RNA isolated from different tissues or cells were added into the assay wells and the m6A contained in RNA was measured using the EpiQuik™ m6A RNA Methylation Quantification Kit.

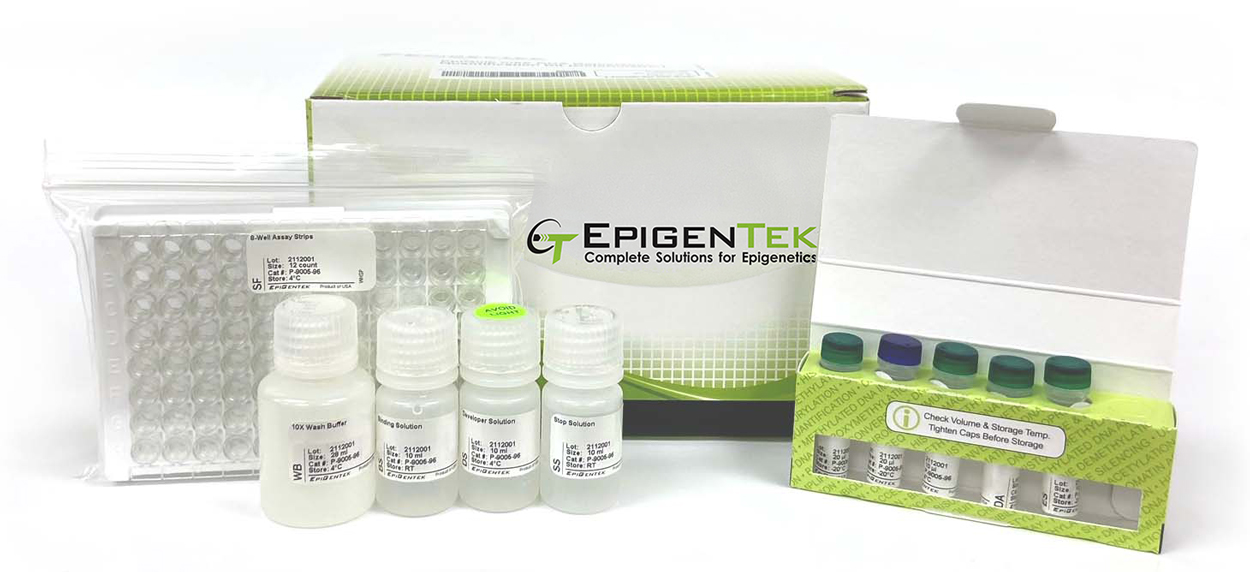

Product Components

WB (10X Wash Buffer)
BS (Binding Solution)
NC (Negative Control, 100 µg/ml)*
PC (Positive Control,  m6A 2 µg/ml)*
CA (Capture Antibody, 1000 X) *
DA (Detection Antibody, 1000 X)*
ES (Enhancer Solution)*
DS (Developer Solution)
SS (Stop Solution)
8-Well Assay Strips (With Frame)
User Guide

*Spin the solution down to the bottom prior to use.

User Guide & MSDS

[User Guide]*
*Always use the actual User Guide that shipped with your product. Is the above file locked? You can also request user guides by emailing info@epigentek.com along with your contact information and institution name.

Product Citations

Zhang C et. al. (April 2016). Hypoxia induces the breast cancer stem cell phenotype by HIF-dependent and ALKBH5-mediated m6A-demethylation of NANOG mRNA. Proc Natl Acad Sci U S A. 113(14):E2047-56.

Yuen KC et. al. (January 2016). NIPBL Controls RNA Biogenesis to Prevent Activation of the Stress Kinase PKR. Cell Rep. 14(1):93-102.
